Applications:
For Flight Case
Base panel
Made solely from hardwood veneers,including birch,eucalyptus.etc
Bonding
Weather resistant gluing according to EN 314-2 / class 3.
14L960 Dynea phenolic WBP glue for birch wood species
14L962 Dynea phenolic WBP glue for eucalyptus,poplar,pine.etc wood species
Surfaces

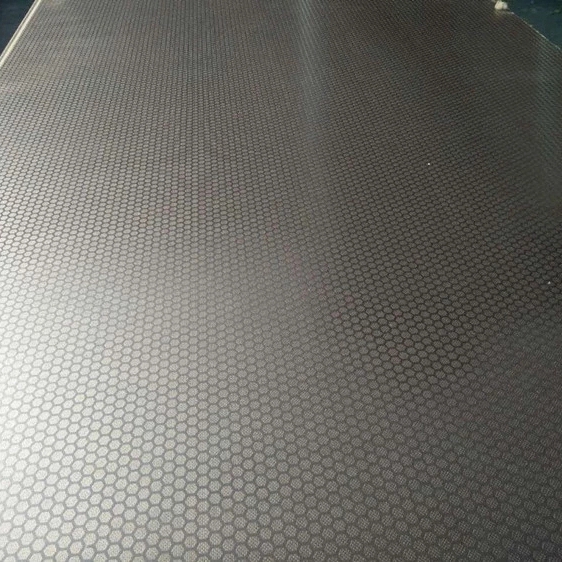

Face: Phenolic resin coating with wire mesh pattern.
Reverse: Phenolic resin coating with or without imprint.
Colour: Dark brown,Black. etc
Coating film weight: 120 g/m² ,160g/m² or 220 g/m²
Edge protection
Acrylic-based paint
Machining
Edge and CNC machining available on request.
|
Thicknesses, mm: |
6,5; 9; 12; 15; 18; 19; 21; 24; 27; 30; 35; 40 |
|
Sizes, mm: |
2440x1220 or 1220x2440, 2500x1250 or 1250x2500, 2500x1525, 1525x3050, cut-to-size |
|
Grades: |
I/I |
|
Types of surface: |
F/W (smooth/wire) |
|
Film density: |
120/120 g/m2; 120/220 g/m2, 220/220 g/ m2 |
|
The formaldehyde emission |
Super E0 or E1 |
(other film densities and patterns are available upon the agreement with the customers
|
Product |
Type of surface |
Film density, g/m2 |
Taber revolutions* |
Rolling wear** |
Slip Resistance*** |
|
WP Anti-slip Wire |
F/W |
120 |
400-450 |
3500 |
R10 |
|
WP Anti-slip Wire |
F/W |
220 |
750-800 |
5500 |
R12 |
The films of other densities are available on request.
* Wear resistance is tested according to DIN 53799/EN 438-2
** Resistance to rolling wear is determined by a method corresponding to SS 923508.
*** Slip resistance is tested according to DIN 51130
|
Thickness of plywood, mm |
Bending strength, MPa, mean value |
Modulus of Elasticity, MPa, mean value |
||
|
perpendicular to the fiber |
parallel to the fiber |
perpendicular to the fiber |
perpendicular to the fiber |
|
| 6.5 | 60 | 85 | 4300 | 9500 |
| 9 | 65 | 85 | 5700 | 9000 |
| 12 | 60 | 80 | 6000 | 8500 |
| 15 | 60 | 80 | 6500 | 8500 |
| 18 | 75 | 70 | 7000 | 8500 |
| 19 | 70 | 70 | 7200 | 8000 |
| 21,24,27,30 | 70 | 70 | 7000 | 8000 |
DOP supports:
EN 314-2 Class 3 test report
EN 310 test report
DIN 53799/EN 438-2 (R13 wear resistance test)
For more details,please send your requirements to us for full plywood solutions.
