Applications:
For Industrial Floor

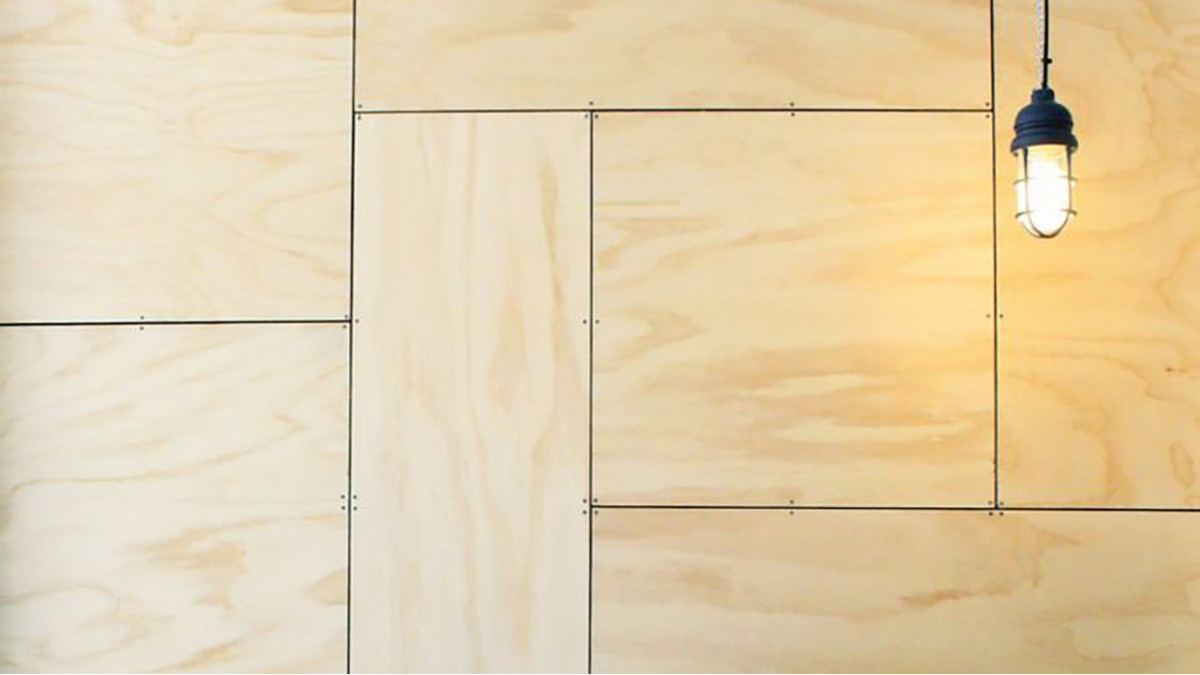

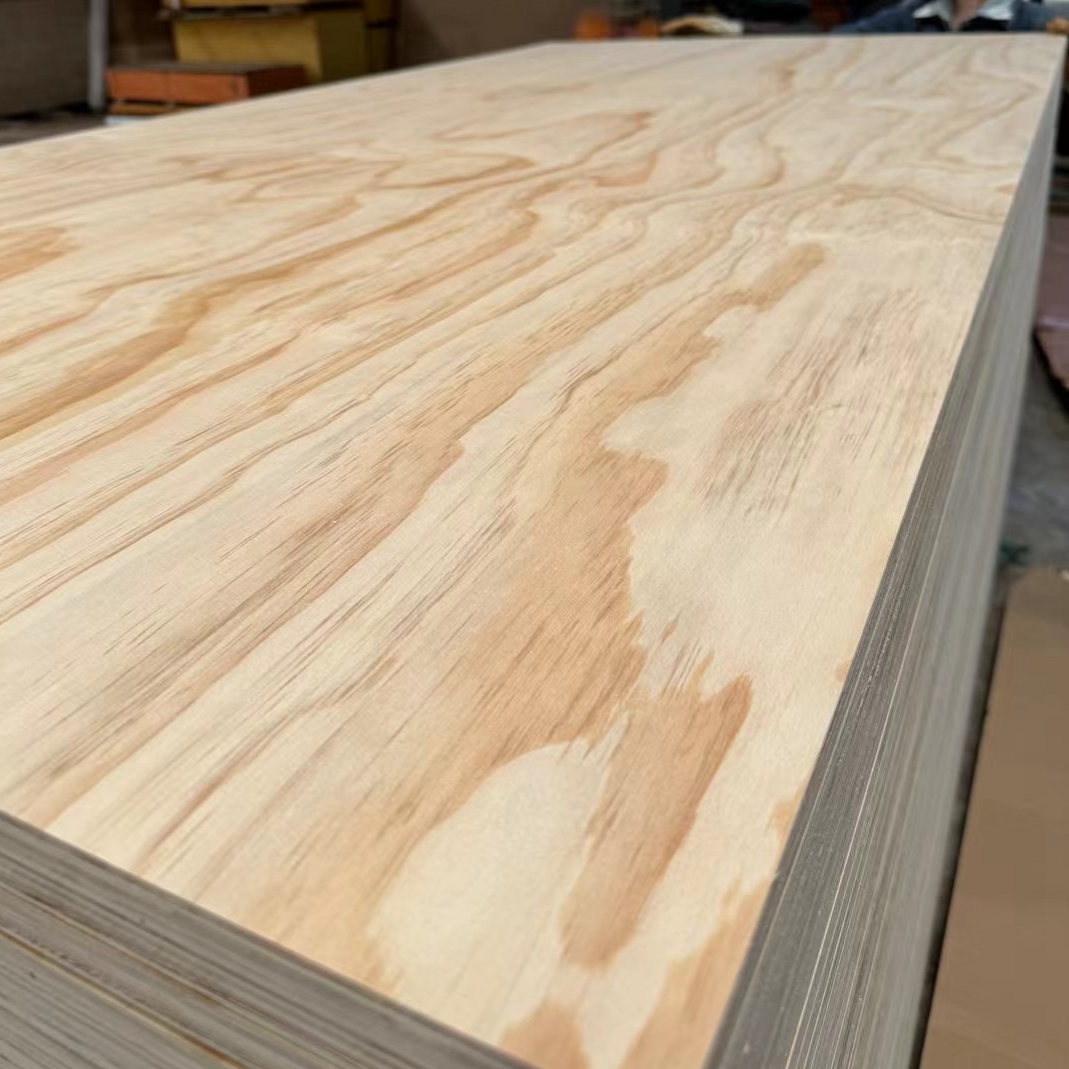

B/C Structural Plywood is a durable panel made from thick wood veneer glued together with strong adhesive. It's ideal for a range of structural applications, such as flooring, roofing, and wall sheathing.
B/C grade means that one side has a B grade face with natural blemishes, while the other has a C grade back with more noticeable knots. Both sides are suitable for structural use.
One of the key benefits of B/C Structural Plywood is its strength and resistance to wear and tear. The plywood's multi-layer construction provides added stability and resistance to warping and twisting. Additionally, the plywood's surface is smooth enough to accept paint and stain well, making it easy to customize for a variety of projects.
B/C Structural Plywood is easy to work with, cut, drilled, sanded with standard tools, and installed using common techniques. It's perfect for DIY projects and larger construction jobs. Overall, B/C Structural Plywood is a versatile, durable, and reliable panel that can meet the needs of professional builders and DIY enthusiasts alike.
The following specifications apply to all WP structural plyboard products:
|
Standard |
AS/NZS2269 Structural Plywood |
|
Stress Grade |
F11 (F14 on request) |
|
Timber Species |
Radiata Pine (Pinus radiata) |
|
Moisture Content |
8-12% |
|
Tolerance |
As per AS/NZS2269 |
|
Adhesive |
14L962 Dynea Phenolic WBP Glue (AS2754.1) |
|
Bond |
Type A (AS/NZS2098.2) |
|
Formaldehyde Emission |
Super E0 |
|
Thermal Expansion |
Average coefficient of thermal expansion for structural plywood is approximately 4.5 x 10-6 mm/mm/°C compared with 11 x 10-6mm/mm/°C for steel. |
|
Certification |
BENCHMARK CERTIFIED BY BSI AUSTRAILA |
|
Thickness of plywood, mm |
Bending strength, MPa, mean value |
Modulus of Elasticity, MPa, mean value |
||
|
perpendicular to the fiber |
parallel to the fiber |
perpendicular to the fiber |
perpendicular to the fiber |
|
| 6.5 | 60 | 85 | 4300 | 9500 |
| 9 | 65 | 85 | 5700 | 9000 |
| 12 | 60 | 80 | 6000 | 8500 |
| 15 | 60 | 80 | 6500 | 8500 |
| 18 | 75 | 70 | 7000 | 8500 |
| 19 | 70 | 70 | 7200 | 8000 |
| 21,24,27,30 | 70 | 70 | 7000 | 8000 |
DOP supports:
Radiata pine grade ranks
MSDS for Dynea phenolic WBP glue
AS-NZS 2269 test report
Formaldehyde emissions test report
H2,H3 treated test report
For more details,please send your requirements to us for professional wood plan.
